ERDI TECH LTD · Chengdu, China
Optical datasheet,
powered on.
Thirty-seven 905 nm Class-1 DToF laser rangefinder modules, from a 9 metre short-range unit to a 12-gram core that reaches beyond 3,000 metres. Every specification on this site is published with the condition it was measured under.
Or send us the application — two fields are required, and a person replies within one working day.
- Models
- 37
- Primary wavelength
- 905 nm
- Eye safety
- Class 1
- Reach
- 3,000 m
Flagship

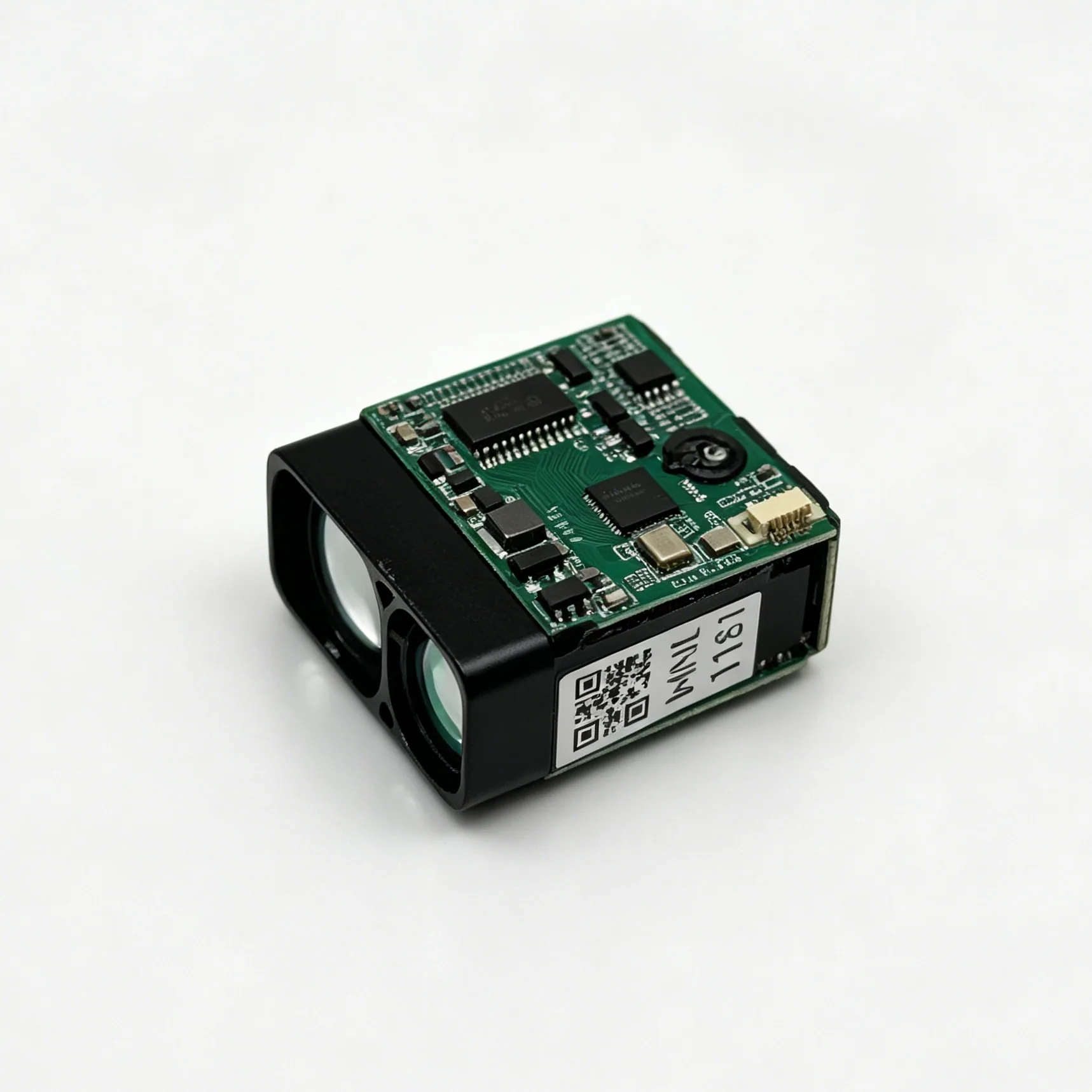

LRF3000A1
905 nm long-range DToF rangefinder module
Ranging envelope
≥ 3,000 m
- Accuracy
- ±0.7 m (≤100 m)
- Frequency
- 3–10 Hz adaptive
- Envelope
- 13.5 × 25.1 × 27.8 mm
- Mass
- 12 g
Published price
$260 USD / unit
02 / Coverage
The whole line, on a single axis.
Each bar is one module's ranging envelope, drawn to a shared logarithmic scale from 1 m to 3,000 m. Teal marks the minimum working distance, crimson the published maximum.
LRF·17 modules
SPD·11 modules
DToF·9 modules
03 / Families
Three families, one measurement principle.
LRF
17 modelsLong-range 905 nm ranging cores. Tube and board formats, 600 m to beyond 3,000 m.
Browse LRF

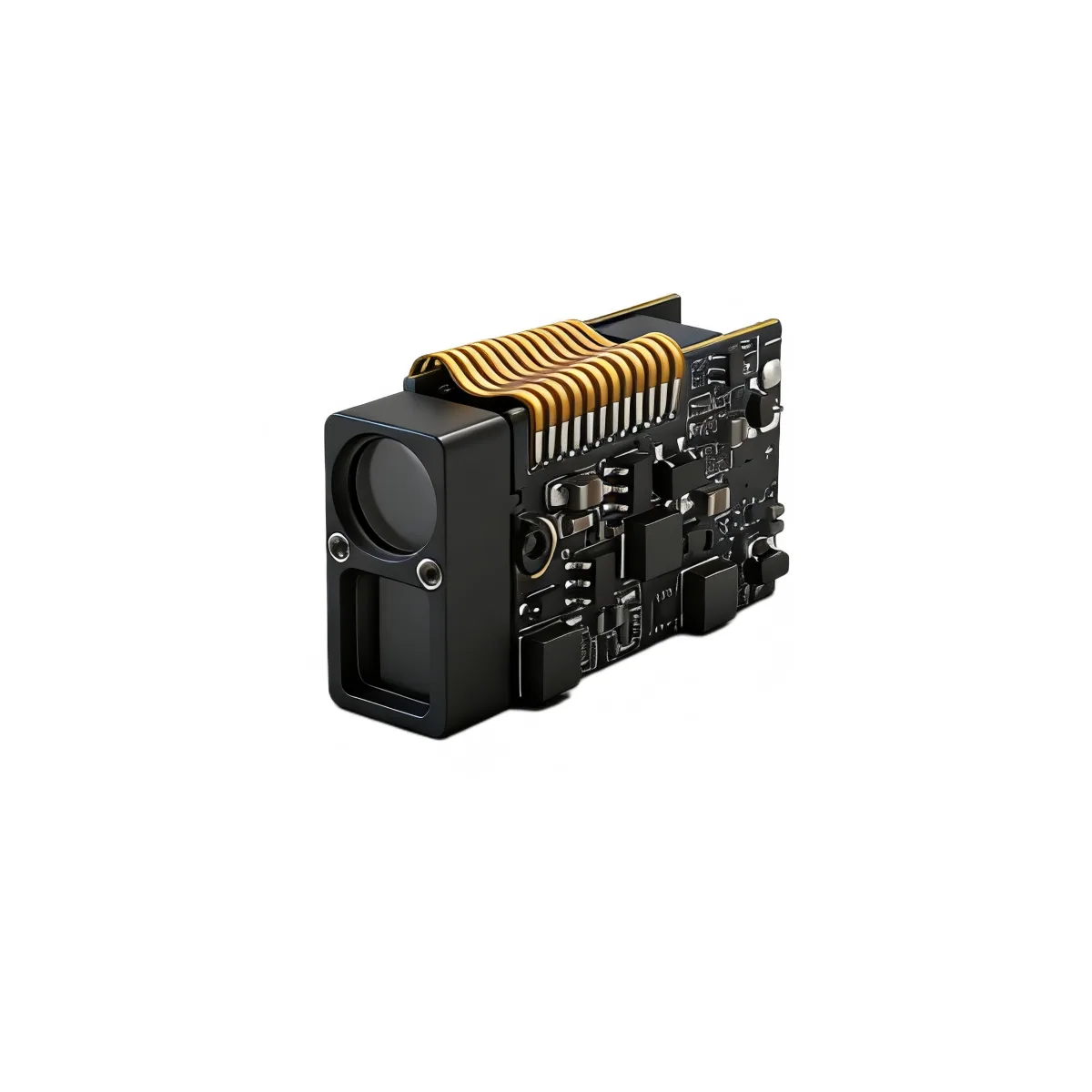

SPD

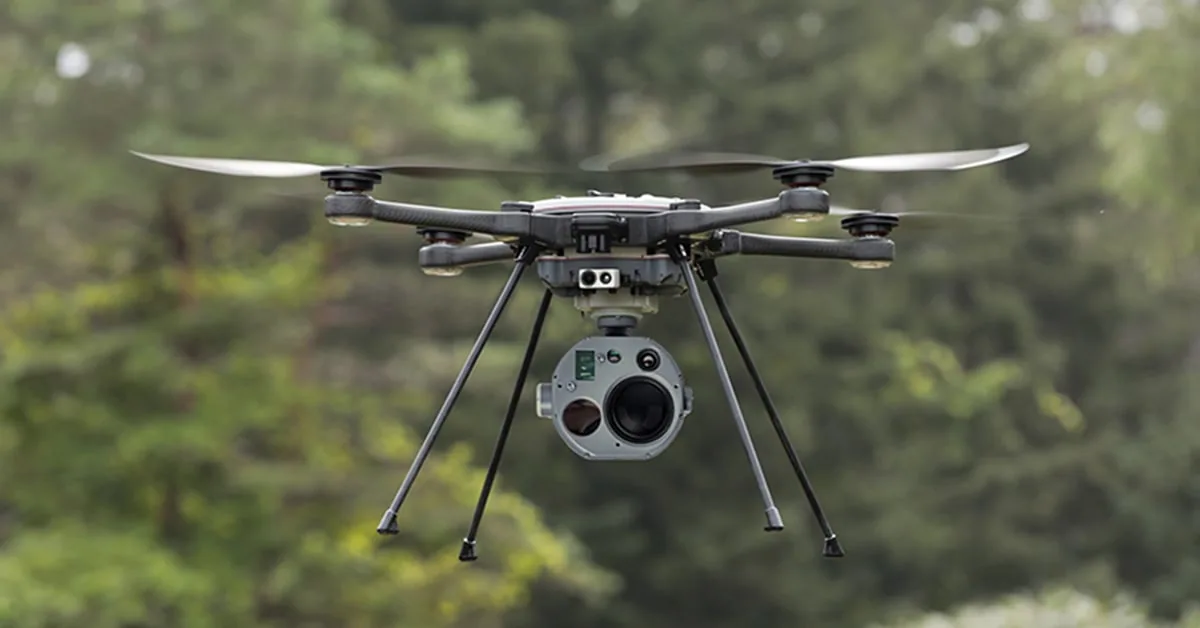

11 modelsMini and integration modules built for night vision, thermal and gimbal payloads.
Browse SPD
DToF
9 modelsCompact direct time-of-flight units for short-range sensing, 9 m to 1,500 m.
Browse DToF
04 / Selected
Where engineers start.

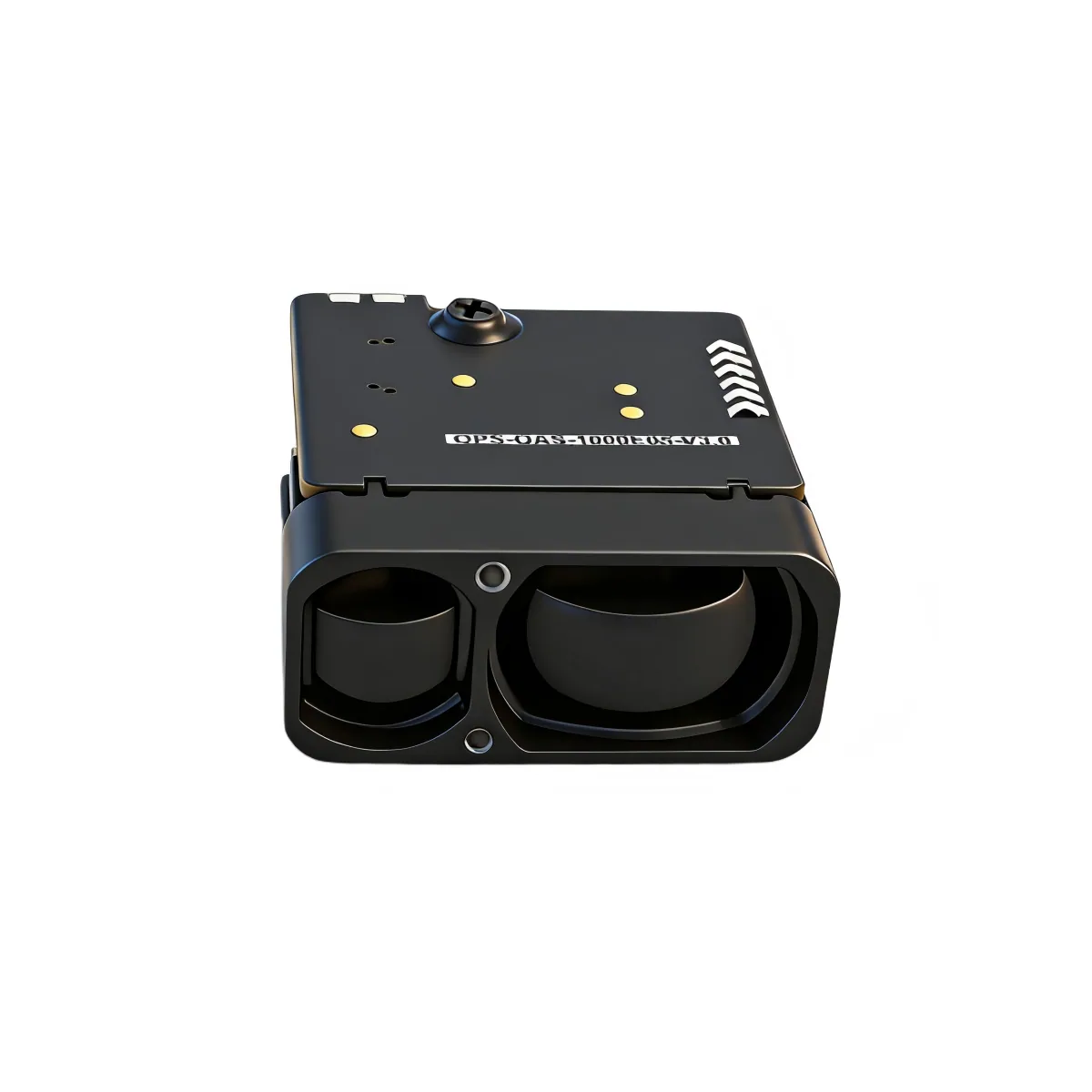

LR2000E2
905 nm Class 1 adaptive-frequency DToF rangefinder module
4–2,000 m
- Accuracy
- ±1 m (≤400 m)
- Interface
- UART-TTL
$160 USD / unit
LR2000E4
905 nm adaptive-frequency DToF rangefinder module
4–2,000 m
- Accuracy
- ±1 m (≤400 m)
- Interface
- UART-TTL
$160 USD / unit
LR1500D23
905 nm Class 1 DToF rangefinder module
4–1,500 m
- Accuracy
- ±1 m
- Interface
- UART-TTL
$140 USD / unit
05 / Evidence
How this catalogue is allowed to talk about numbers.
Four rules the site holds itself to. They are commitments about presentation, not claims about performance.
01
Every figure carries its condition
A maximum range means nothing without the target reflectivity and visibility it was measured at. Both are printed next to the number, on every model.
02
Unknown stays unknown
Where a parameter is not published for a model, the field is left empty. It is never filled with a family average or a plausible estimate.
03
One published price, no invented ladders
Each model shows its published entry-band unit price. Only LRF3000A1 has a published volume ladder; the rest say so, rather than inventing bands.
04
The datasheet is the authority
The specification table on this site is generated from the same source as the PDF. If the two ever disagree, the datasheet wins and the site is wrong.
06 / Manufacture

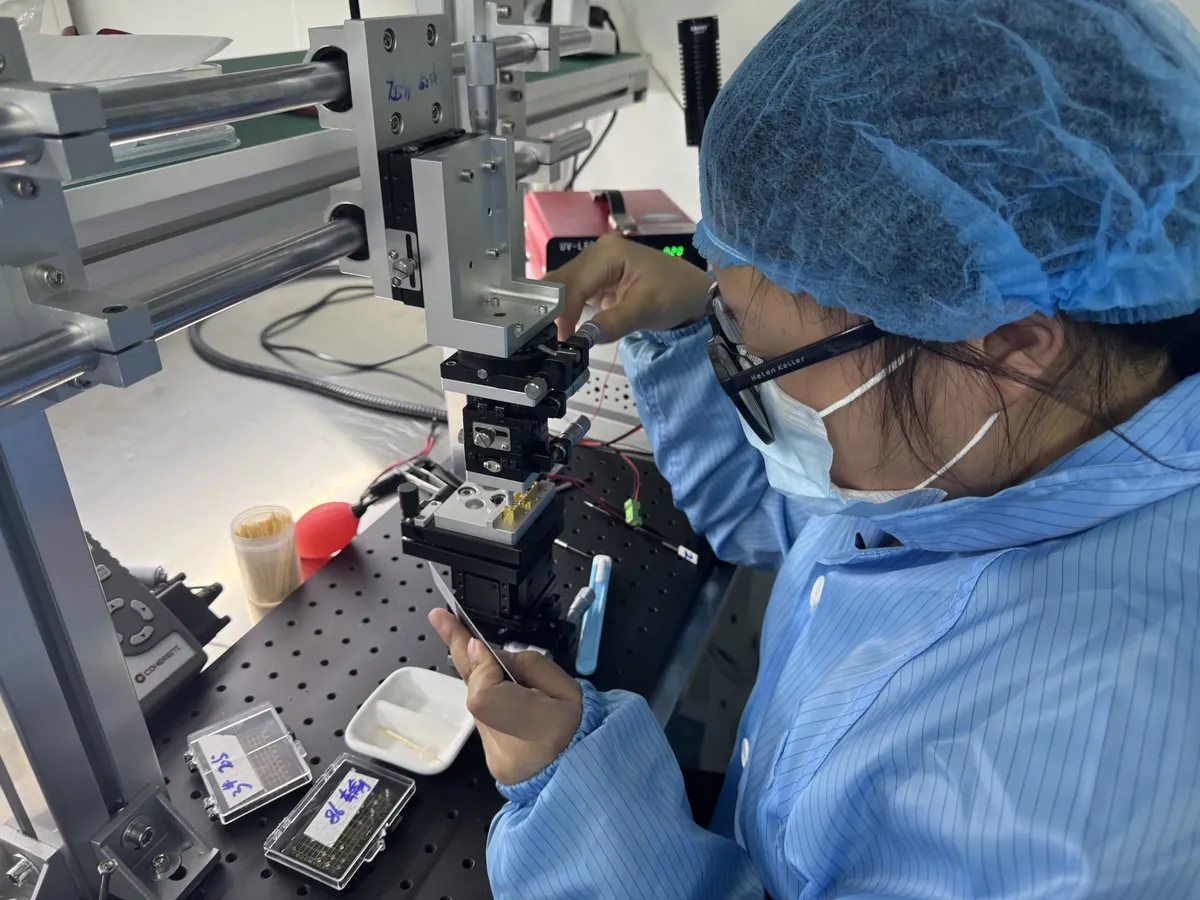

Machined, assembled and calibrated in-house.
ERDI reinvests more than 15% of annual revenue into R&D. Production stays vertically integrated in-house — CNC machining, clean-room assembly and automated, per-unit calibration — so every module leaving the factory is tested against its published specification before it ships.
Every ERDI module carries a 2-year warranty. Within the first 12 months, any verified manufacturing defect is replaced with a brand-new unit free of charge. A 30-day trial/return window applies from delivery. Technical support is available for the lifetime of the product.
Send us the platform, not just the part number.
Target, distance, host optics, supply rail and volume. We come back with the model that fits and the conditions it was measured under.
