Flagship — long-range compact
LRF1200A1

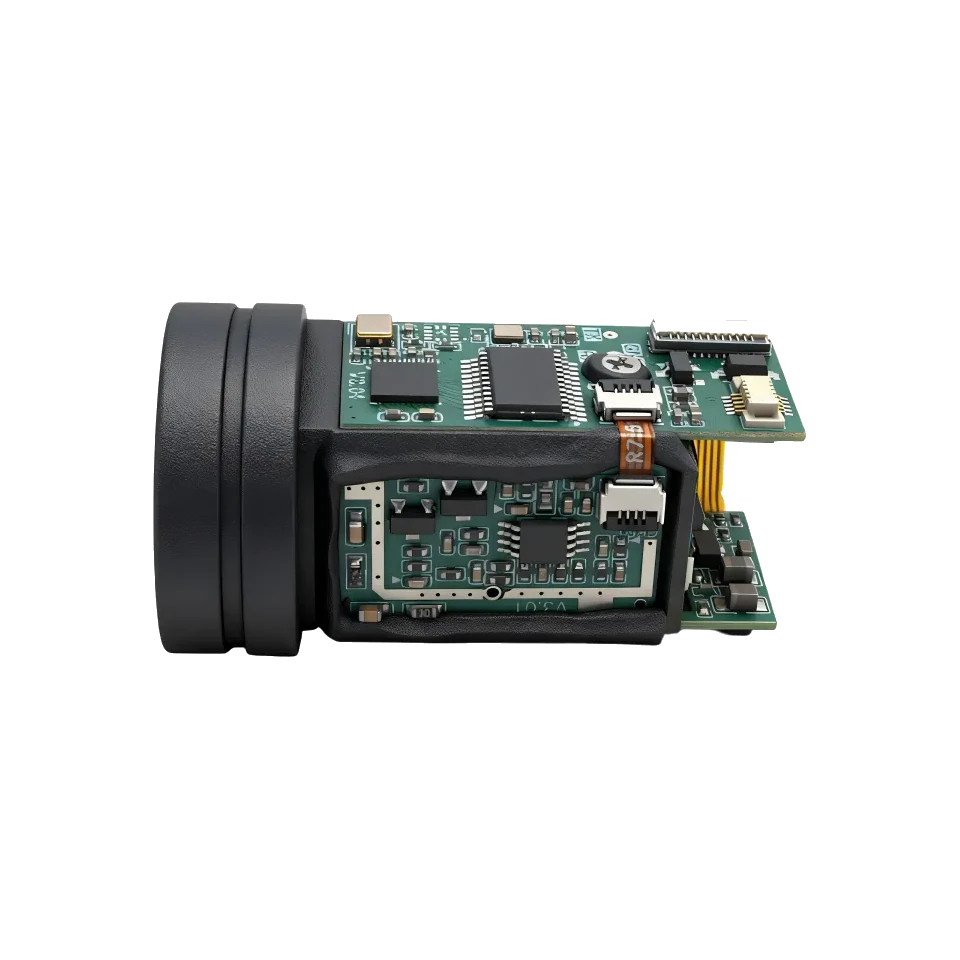

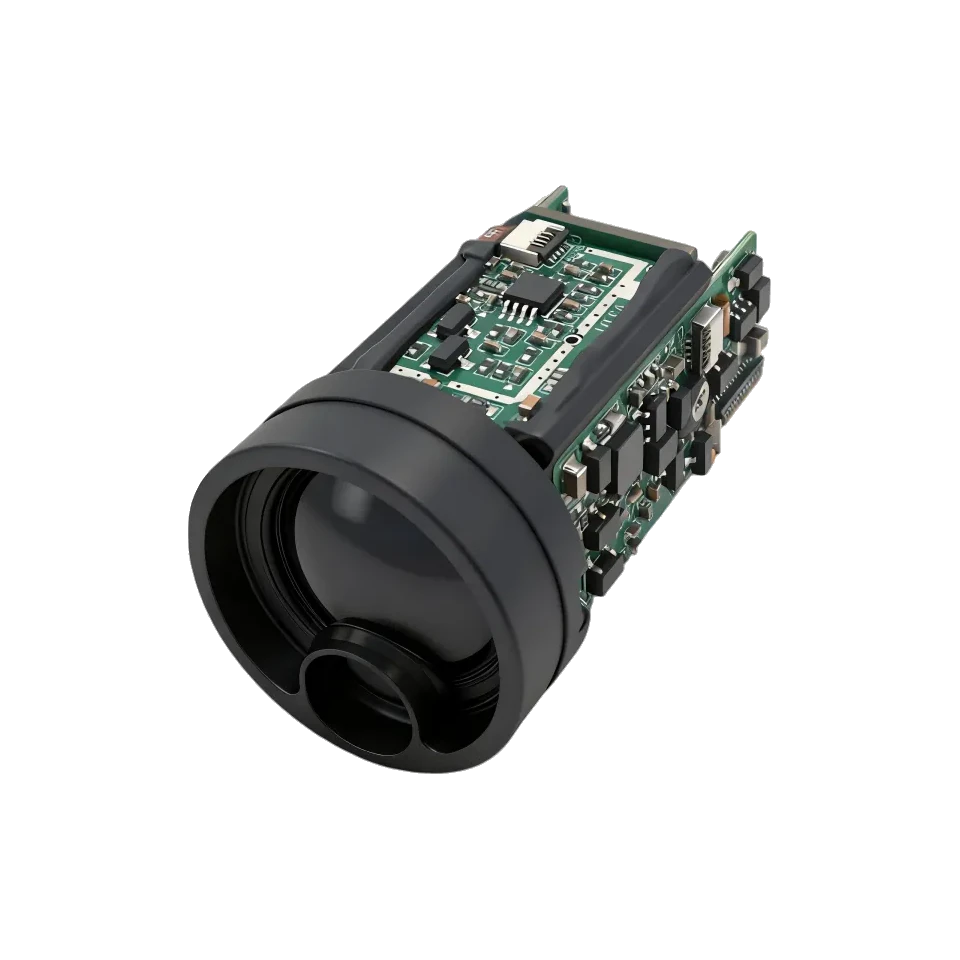

905 nm Class 1 long-range DToF rangefinder module
Ranging envelope
≥5–1,200 m
Key parameters
- Ranging range
- ≥5–1,200 m
- Accuracy
- ±1 m (5–100 m)
- Frequency
- 1–3 Hz
- Interface
- UART, TTL 3.3 V
- Envelope
- Φ23 × 40 mm
- Mass
- 18 g
Published price
$130 USD / unit
Entry-band unit price at the smallest published quantity. Shipping and Incoterms are confirmed in the quotation.
The value-tier long-reach companion to LRF3000A1: an 18 g, Φ23 × 40 mm Class-1 module reaching 1,200 m building range at 1–3 Hz over UART-TTL, for compact civilian integration evaluation.
Designed into
- Handheld optics
- Industrial ranging
- Security optics
Verified specifications
Every figure below is published together with the condition it was measured under. Where the source states no condition, the column is left empty rather than filled in.
| Parameter | Value | Condition |
|---|---|---|
| Measuring range | ≥5–1,200 m | Building target |
| Ranging accuracy | ±1 m (5–100 m) · ±(1 + L×0.4%) m (>100 m) | Source technical table |
| Display resolution | 0.1 m | Source technical table |
| Ranging frequency | 1–3 Hz | Source technical table |
| Interface | UART, TTL 3.3 V | Source technical table |
| Supply voltage | 3.3 V ± 0.1 V | Source technical table |
| Dimensions | Φ23 × 40 mm | Source technical table |
| Weight | 18 g | Source technical table |
| Laser safety class | Class 1 | Per product title, "eye-safe" |
| Operating temperature | On request | Source technical table |
| Protection rating | On request | Source technical table |
Not published
No pin assignment is published for LRF1200A1. The interface is UART, TTL 3.3 V; request the interface control document and we send the pinout and protocol with it.
