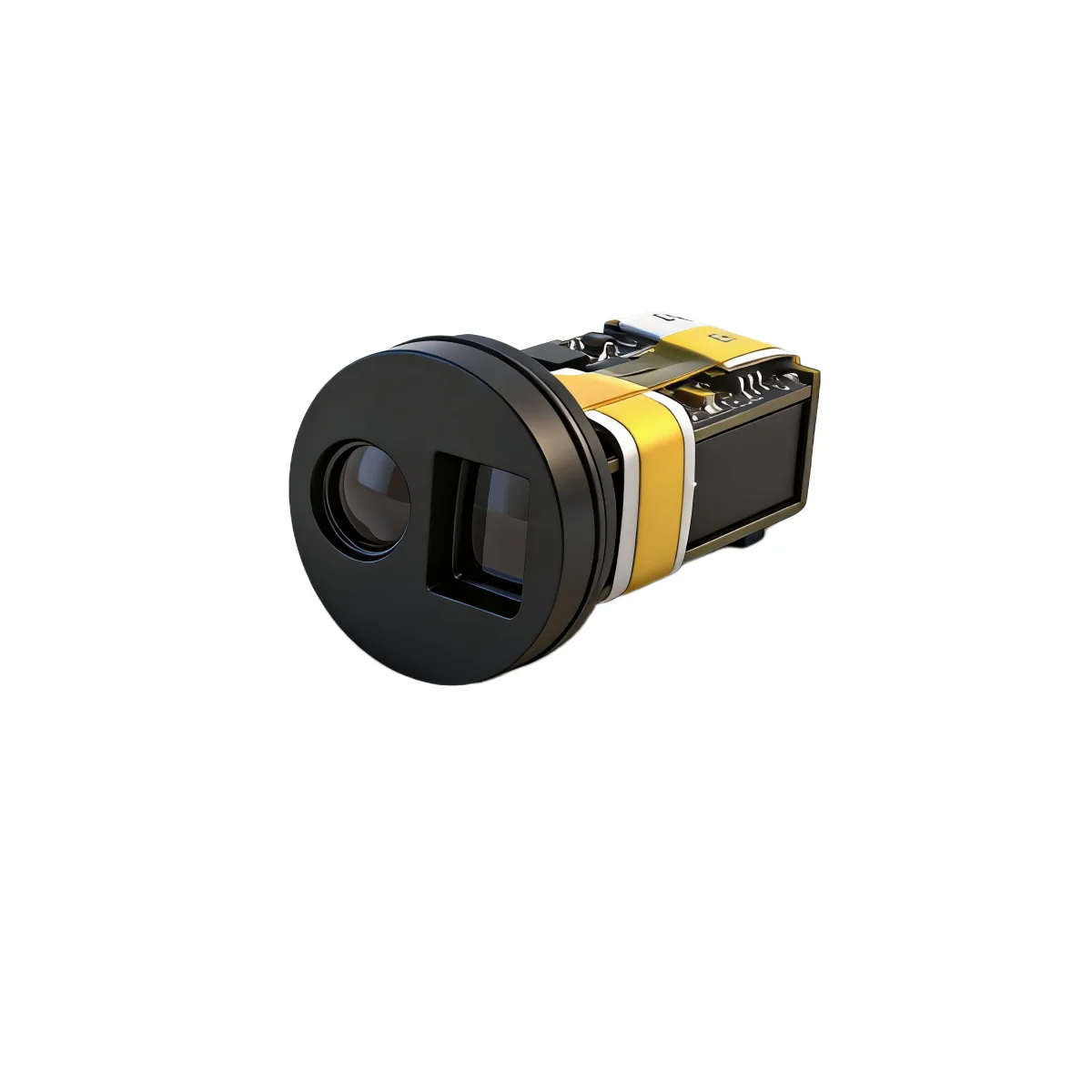

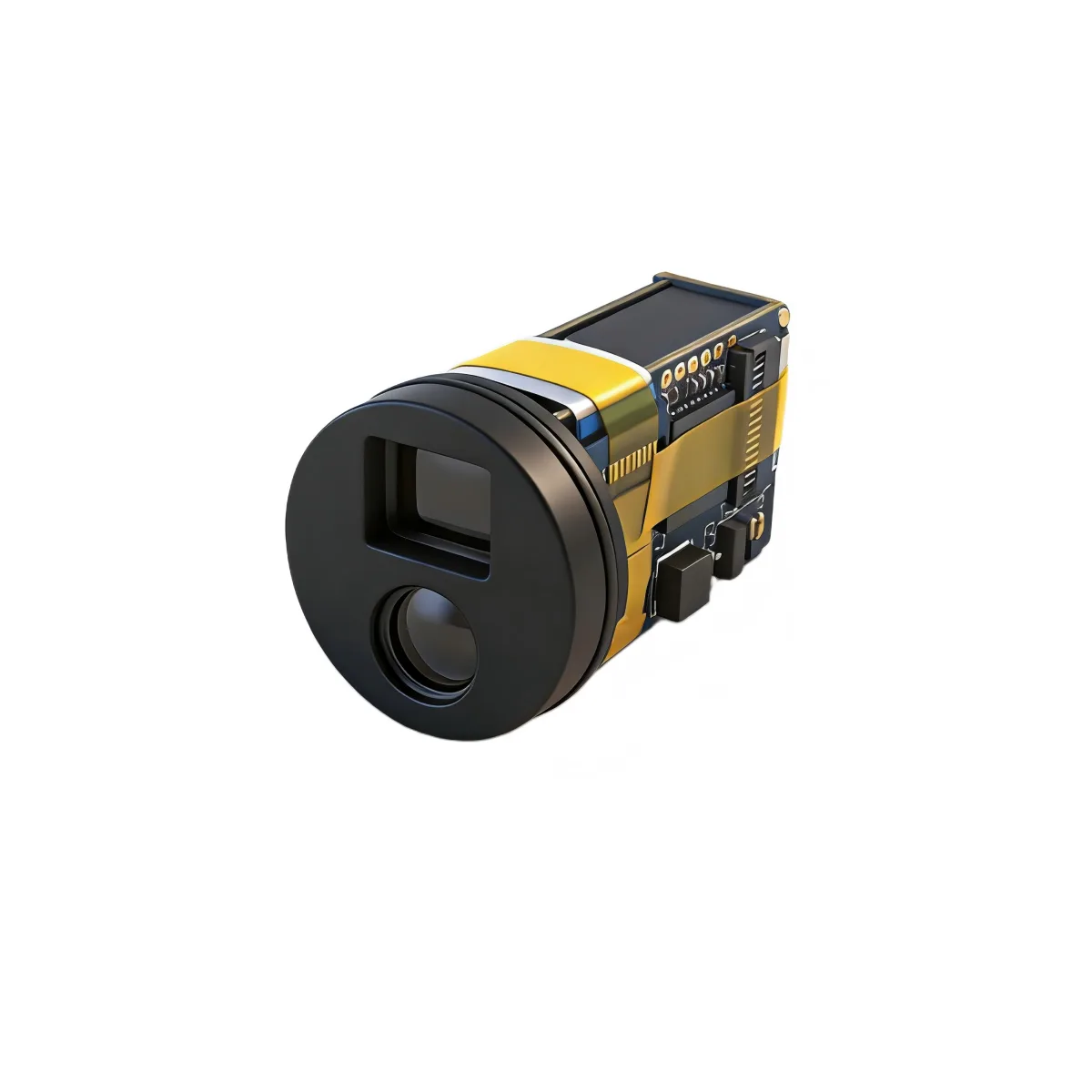

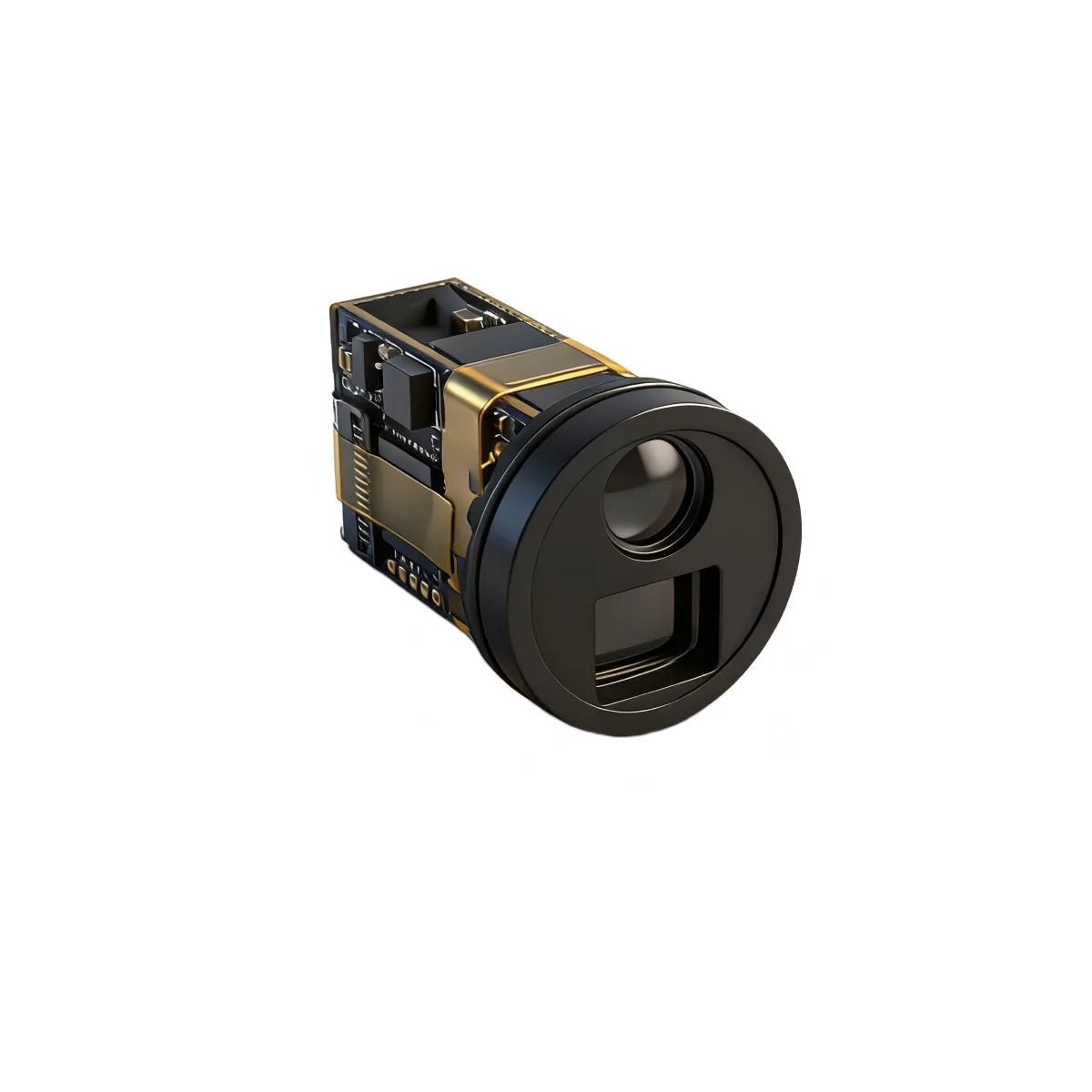

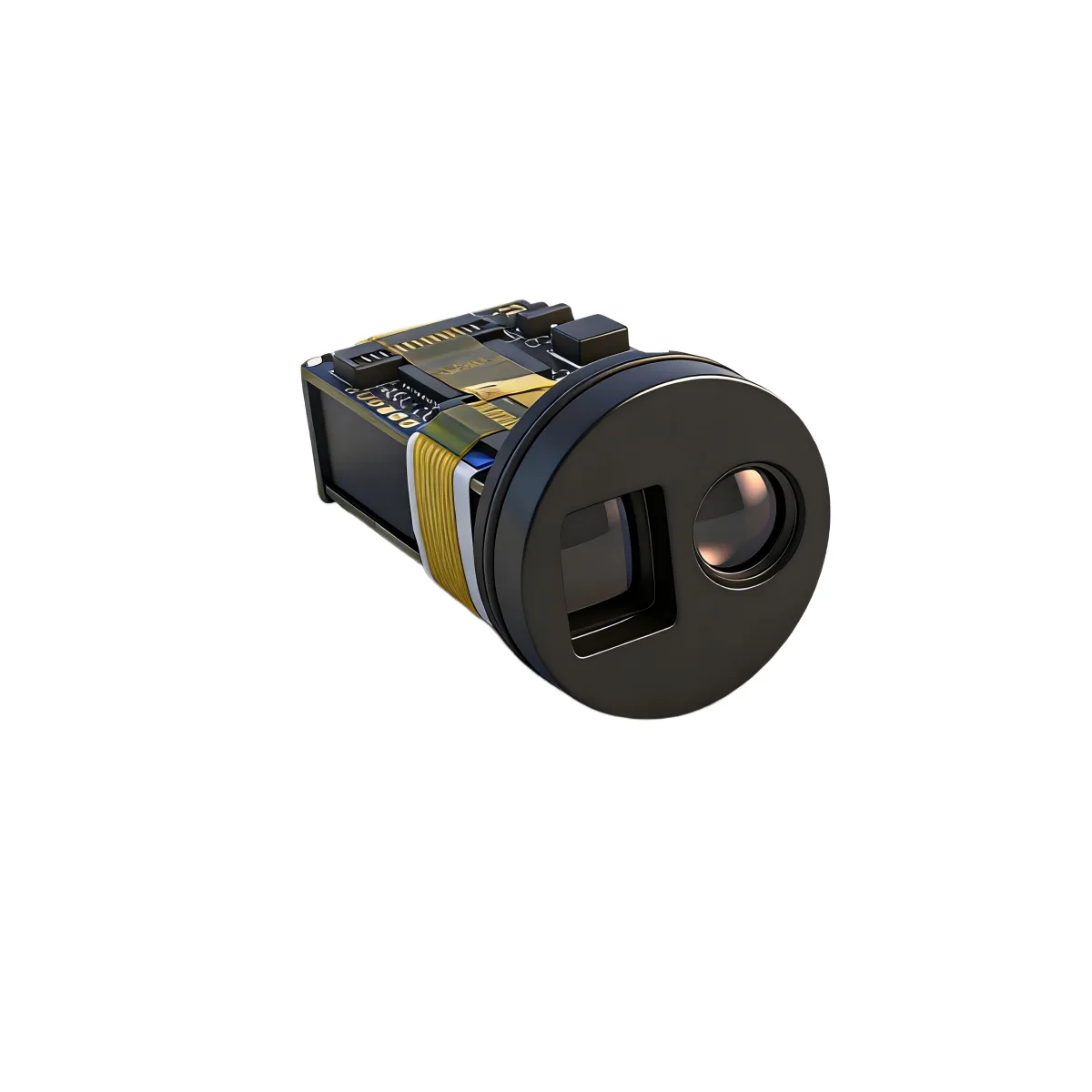

SPD1200H2
905 nm Class 1 miniature DToF rangefinder module
Ranging envelope
0.2–1,200 m (1,500 m night)
Key parameters
- Ranging range
- 0.2–1,200 m (1,500 m night)
- Accuracy
- ±0.3 m (≤100 m)
- Frequency
- 2–15 Hz adaptive
- Interface
- UART-TTL
- Envelope
- Ø17 × 28.2 mm
- Mass
- ≤ 6 g
Published price
$50 USD / unit
Entry-band unit price at the smallest published quantity. Shipping and Incoterms are confirmed in the quotation.
Micro 905 nm rangefinder module for thermal imagers, night vision and civil UAV payloads — a Ø17 × 28.2 mm, ≤ 6 g distance engine for weight-critical optics.
Designed into
- Thermal imaging
- Night vision
- Civil UAVs
Emitter
905 nm ± 5 nm
Verified specifications
Every figure below is published together with the condition it was measured under. Where the source states no condition, the column is left empty rather than filled in.
| Parameter | Value | Condition |
|---|---|---|
| Laser wavelength | 905 nm ± 5 nm | Source technical table |
| Laser beam divergence | On request | Source technical table |
| Optical material | On request | Source technical table |
| Receiving aperture | On request | Source technical table |
| Measurement range | 0.2–1,200 m | Max 1,500 m at night |
| Ranging accuracy | ±0.3 m (≤100 m) · ±0.3 m + d·0.7‰ (>100 m) | Source technical table |
| Measurement frequency | 2–15 Hz adaptive | Adaptive · source technical table |
| Interface | UART-TTL | Source technical table |
| Baud rate | 115200 bps | Source technical table |
| Supply voltage | DC 3.3–5 V | Source technical table |
| Startup time | On request | Source technical table |
| Average laser power | On request | Source technical table |
| Response time | On request | Source technical table |
| Operating power | Average 0.45 W · max ≤ 0.75 W | Source technical table |
| Operating temperature | -20 to +60 ℃ | Source technical table |
| Storage temperature | On request | Source technical table |
| Protection rating | IP67 (lens cavity) | Source technical table |
| Laser safety class | Class 1 (eye-safe) | Source technical table |
| Dimensions | Ø17 mm × 28.2 mm | Source technical table |
| Weight | ≤ 6 g | Source technical table |
| Shock / vibration | On request | Source technical table |
| Reliability | On request | Source technical table |
Pin assignment
| Pin | Signal | Description |
|---|---|---|
| 1 | SW-SHOT | Function enable (active high) |
| 2 | RXD | Host → module |
| 3 | TXD | Module → host |
| 4 | I/O | Reserved for expansion |
| 5 | VCC | Power + |
| 6 | GND | Power − |
