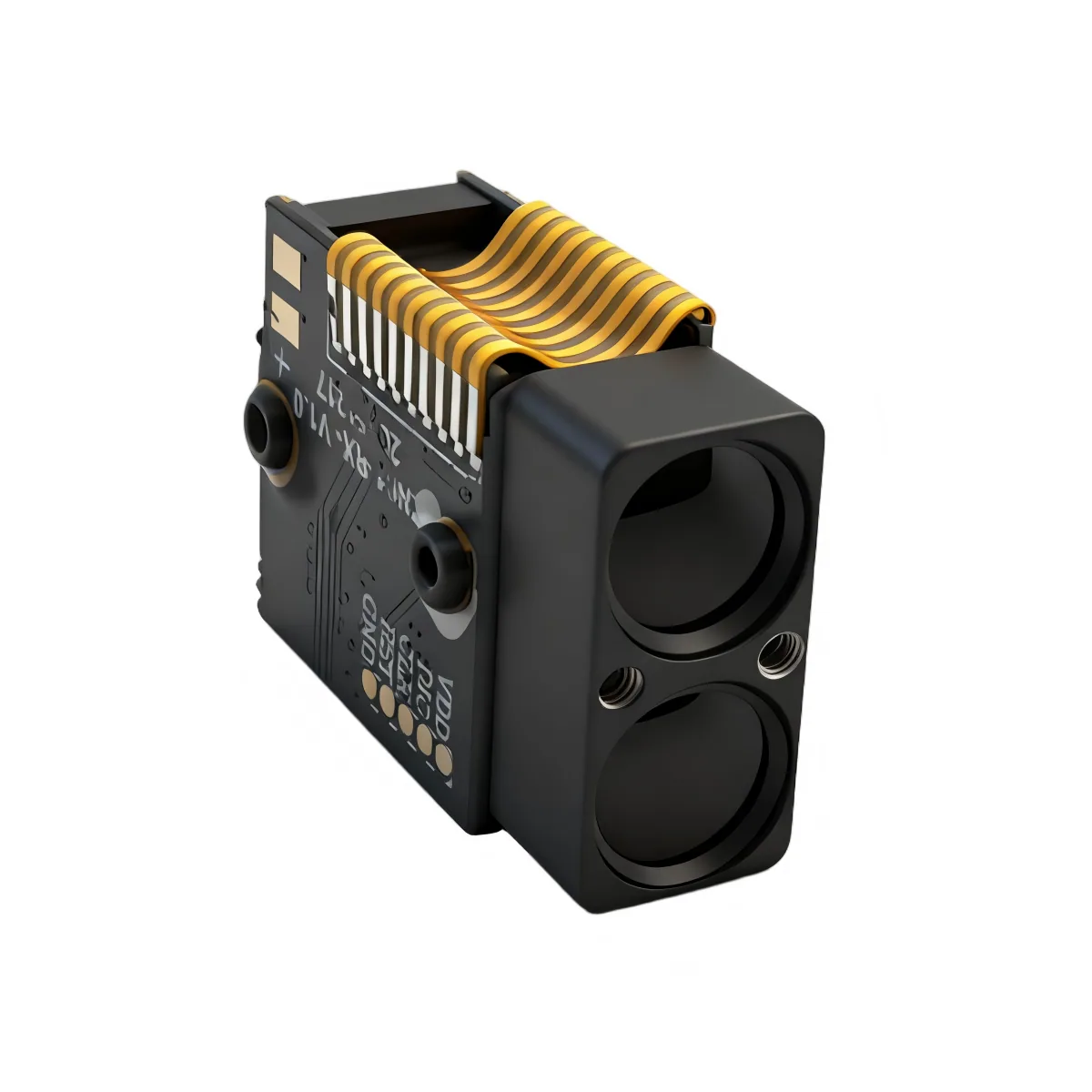

SPD1200N2

Miniature 905 nm ranging module for civil electro-optical products needing stable distance measurement in an extremely compact Ø15.7 × 21.3 mm, ≈ 5 g package.

Max range: 0.2–1,200 m (1,500 m night)
Accuracy: ±0.3 m (≤100 m)
Weight: ≈ 5 g
Interface: UART-TTL

905 nm Class 1 · IEC 60825-1 Night vision Thermal imaging Civil optics

Request a quote Download datasheet (PDF)

SPEC / SHEET

SPD1200N2 · 905 nm

Technical specifications full sheet


Laser wavelength	905 nm ± 5 nm
Laser beam divergence	< 4.5 mrad
Optical material	PMMA
Receiving aperture	Ø 6.5 mm
Measurement range	0.2–1,200 m (max 1,500 m at night)
Ranging accuracy	±0.3 m (≤100 m) · ±0.3 m + d·0.7‰ (100–1,200 m)
Measurement frequency	2–15 Hz / 4–15 Hz adaptive
Accuracy rate	≥ 98%
False alarm rate	≤ 1%
Interface	UART-TTL (customizable)
Baud rate	115200 bps (default)
Supply voltage	3.3–5 V
Startup time	≤ 200 ms
Average laser power	On request
Response time	On request
Operating power	Average ≈ 0.45 W · max ≤ 0.75 W
Operating temperature	-20 to +60 ℃
Storage temperature	-30 to +70 ℃
Protection rating	IP67 (inside lens cavity)
Laser safety class	IEC Class 1
Dimensions	Ø15.7 mm × 21.3 mm (cylindrical, sealing groove)
Weight	≈ 5 g
Shock / vibration	1000 g/ms (10×/s along optical axis) · 5–50–5 Hz, 2.5 g
Reliability	MTBF ≥ 1500 h

Interface UART-TTL, 6-pin

Pin	Signal	Description
1	GND	Power −
2	VCC	Power +
3	I/O	Reserved for expansion
4	TXD	Module → host
5	RXD	Host → module
6	SW-SHOT	Function enable (active high)

Application fit where it ships

Night vision Thermal imaging Civil optics

Data is transmitted as a standard 8-byte UART frame (0x55 0xAA header, function code, four data bytes, checksum); distance is returned as the value ×10 for a one-decimal reading. A PC configuration tool and standard command set are available for integration.
